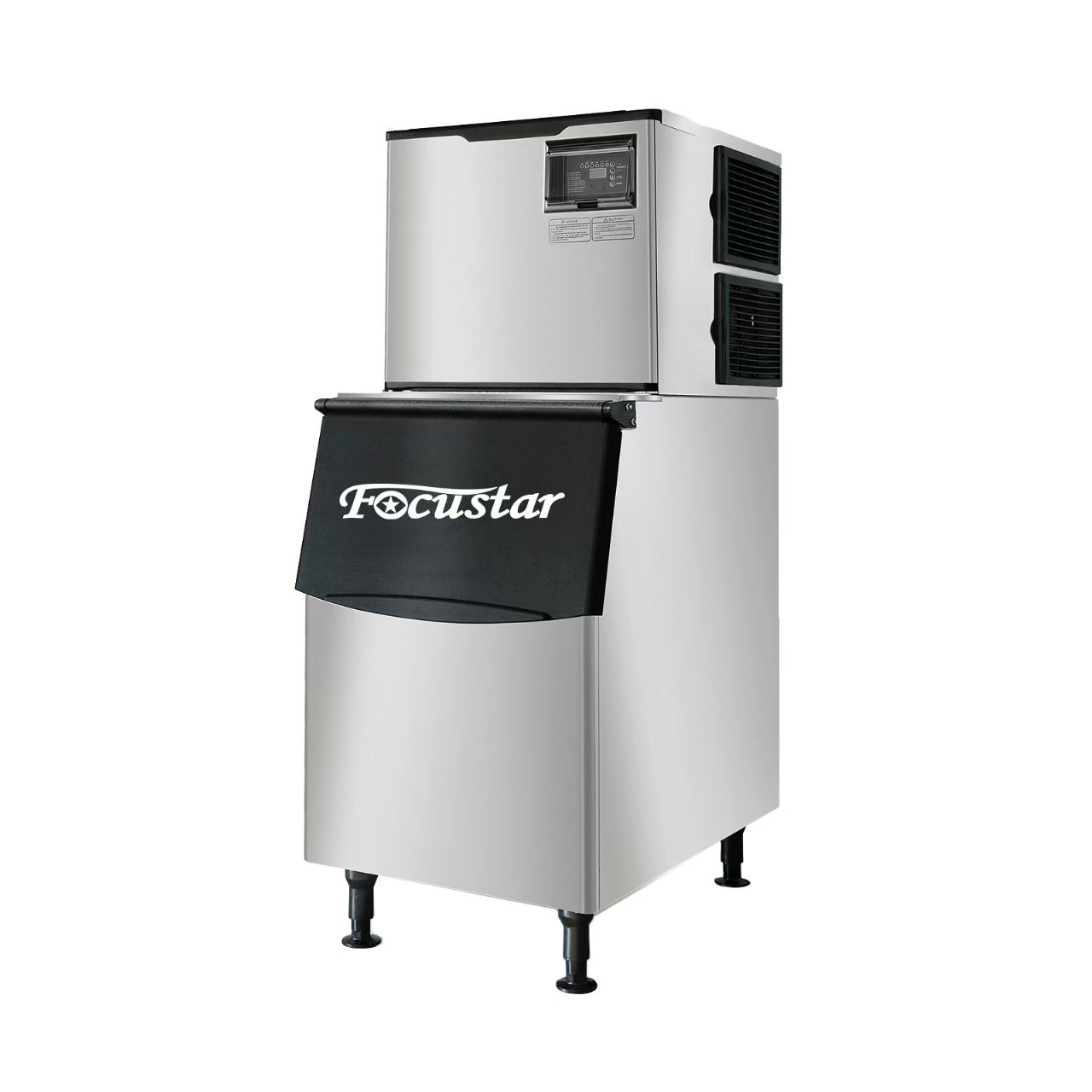

Commercial cube ice machine, which produce edible cube ice, always satisfy various customers in the field of such as bar, beverage shop, seafood house, restaurant, hotel,etc
Commercial ice making machine produce square transparent, hard and pure ice, the size can be adjustable, with easy and intelligent operation. The machine is designed to meet with food grade standard, very clean and all the ice is edible. Our commercial ice machine has the capacity range from 35kg/24h to 900kg/24h
The material of ice cube maker is used stainless steel for the frame and outer shell plate and use Nickel-plate Brass material for producing ice (ice molds). The whole processing of cube ice reaches the international standard for hygiene. So the cube ice is safe to human consuming.
Characteristcs
· Front facing evaporator allows access to the food zone
· All white interior to easily spot grime or mold Ice thickness adjustment
· Crystal clear, pure, hard and long-lasting ice cubes. Micro-computer detecting and controlling system
· Protective device for overloading and auto-detecting
· Steel surfacing board treated specially with oil-resistance
· Wisely combined stainless steel industrial plastic make the product elegant
· The ice storage bucket is covered with plastic and free from any aperture, which results in the perfect heat reserving and realization of food standard.
Technical data:
| No. | Name | Technical Data |
| 1 | Standard Ambient Temperature | 10℃-25℃ |
| 2 | Supply Water Temperature | 5℃-18℃ |
| 3 | Condenser Temperature | 40℃ |
| 4 | Evaporating Temperature | -15℃ |
| 5 | Compressor Type | Highly |
| 6 | Refrigerant | R404A/R290 |
| 7 | Cooling System | Air Cooling or Water Cooling |
| 8 | Max water inlet pressure | 0.55Mpa |
| Notes | ||
| 1. Ice Size: 22*22*22mm, 28*28*22mm, 32*32*22mm, 38*38*22mm; | ||
| 2. Supply Power: 110V, 1P, 60Hz; 220V, 1P, 50Hz; 220V, 1P, 60Hz; 220V, 3P, 60Hz; 380-420V, 3P, 50Hz; 440V, 3P, 60Hz; | ||
| 3. Power Consumption: 310-4000W*H for different types of ice maker. | ||
Model Parameters
| Ice capacity (kg/24h) | Dimensions (mm) | Power (W) | Ice storage capacity (kg) | Cooling mode | Refrigerant |
| 35 | 500x450x803 | 310 | 15 | Air | R290 |
| 55 | 500*590*853 | 460 | 18 | Air | R290 |
| 70 | 660*707*919 | 480 | 36 | Air | R290 |
| 95 | 660*707*919 | 625 | 36 | Air | R290 |
| 120 | 660*707*919 | 730 | 36 | Air | R290 |
| 160 | 560*833*1715 | 765 | 140 | Air/Water | R290 |
| 220 | 760*832*1715 | 1360 | 200 | Air/Water | R404A |
| 310 | 760*832*1715 | 1680 | 200 | Air/Water | R404A |
| 450 | 760*832*1890 | 2400 | 200 | Air/Water | R404A |
| 680 | 1227*965*1927 | 3400 | 350 | Air/Water | R404A |
| 900 | 1227*965*2057 | 4000 | 350 | Air/Water | R404A |
